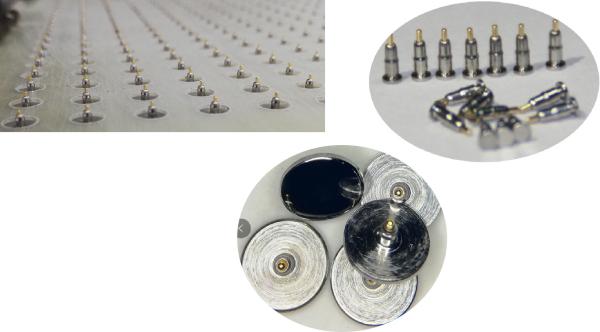

RoHS Magnetic Right Angle Pogo Pins Golden Palting Cold Prossing

Product Categories

Suzhou Texun Precision Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

Right Angle Male Header SMT Type Pogo Pin

Product description	2.5mm Pogo Pin Female Spring connectors 1x06P Dip Type Pogo pin
Spring force	70±20g or customization
Durability	10,000 cycles(minimum)
Rated current	1~3V
voltage	3-36V
RoHS compliant product
To ensure the best usage, pledse operate it based on the working height Based on the engineering drawings, shall not exceed the maximum allowed compression
fo avoid areing issue, The adaptor start to power apply after connector mated fully
Samples	1 week

Product Name	Custom DIP Spring Loaded Contact Pogo Pin For PCB Mount Pin Connector
Material	stainless steel, Brass, Aluminum, Etc.
Finish	Zinc / Nickel / Copper Plating, Powder Coating, Etc.
Standard	Nonstandard or OEM
MOQ	100pcs
Package	PE bag inside, carton outside or per our customers needs

Structure	Ball beads structure	Sloping structure	Perforated structure	Claw structure
Contact impedance	≤ 10mΩ	≤ 30mΩ	≤ 50mΩ	≤ 5mΩ
Long service time	10000+	10000+	10000+	500+
Recommended working current	10A max	10A max	10A max	10A max
Main application areas	Mainly used for charging and condition with certain requirements for vibration and shock	Mainly used for charging or signal transmission of Consumer Electronics	Mainly used for signal transmission or grounding antenna, etc.	Mainly used high-frequency,anti-instantaneous, the situation in which high reliability is required, such as base stations, military industries, and vehicles.
Remarks	The beads increase the internal contacts, the contact is more stable, and the more needle space is required	The most commonly used structure on the market	The space is smaller, but the contact is not stable, the current is easy to run through the spring, and it is not recommended for charging	The needle and the needle tube have multiple contacts to increase the contact stability

How to place the order
* You send us a drawing or sample

* We carry through project assessment

* We make the sample and send it to you

* You think the sample is good then place an order and pay us 30% deposit

* We start to make the product

* When the goods is done, we take photoes for your check and you then pay the balance

* We deliver the products to courier company

Male Header surface mount pogo pins - 3
