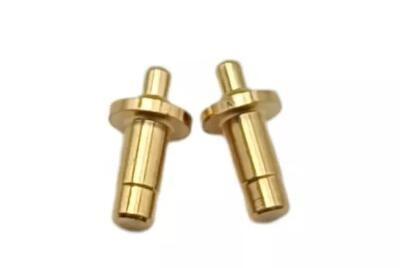

Double Row 2P 3P 4P 5P 6P 8P SMD Waterproof Magnetic Custom Gold
Plated Brass Connectors SMT Pin
1) 6 years of magnetic connector development experience, the
successful development experience of nearly 200 item products
application in many fields; products related to medical,
automotive, electronics equipment, consumer electronics,
intelligent wearable devices, etc.
2) R & D team of independent design and development capability,
advocate as long as you have an idea and the pass to us, free
development; development time 5-7 working days;
3) We have over 12 years of experience for Pogo pin connector, high
current connection, high life expectancy, low impedance, corrosion
resistance and other reliability;
- Magnetic Pogo Pin Connector
- Pogo Pin Connector
- Spring Loaded Pogo Pin
- Probe Contact
Gender | Male |
Pitch | 2.5mm |
Pin Length | 8.5mm to 15.0mm |
Plunger & Barrel Material | Brass 3604 |
Spring | SUS304 |
Spring Force | 70±20g or Customized |
Working Stroke | 1.4mm or Customized |
Mechanical Life | 100,000 cycles |
Rated current | 1~3A |
Voltage | 3-36V |
Contact Resistance | 30 mΩ Max |
- Barrel: Brass C3604/HBI59
- Plunger: Brass C3604/HBI59
- Spring:SUS304
- Plunger: 5u” min.AU over 50~100u” Ni.
- Barrel:5u” min.AU over 50~100u” Ni.
- DC5V: 2A Max 50m Ohm maximum at working height
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements
for vibration and shock | Mainly used for charging or signal transmission of Consumer
electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which
high-reliability is required,such as base stations,military
industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more
stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is
easy to run through the spring,and it is not recommended for
charging | The needle and the needle tube have multiple contacts to increase
the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30%
deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you
then pay the balance
* We deliver the products to courier company
Product suits to all industrial Assemblies & Industrial
Applications. We are a medium to high volume various brass Products
supplier who produce precision Components, Brass Turned Parts,
Shrew machine Parts & Fasteners, including Sub-Assemblies to
specific drawing tolerances. Due to sound engineering and
innovative flair, We can solve manufacturing requirements of the
most technically demanding parts. With state of the art
machineries, skilled labour, sufficient measuring instruments and
Well experienced management, we always serve better quality at best
prices. We are committed in our efforts to give you total
satisfaction in terms of product and service.
