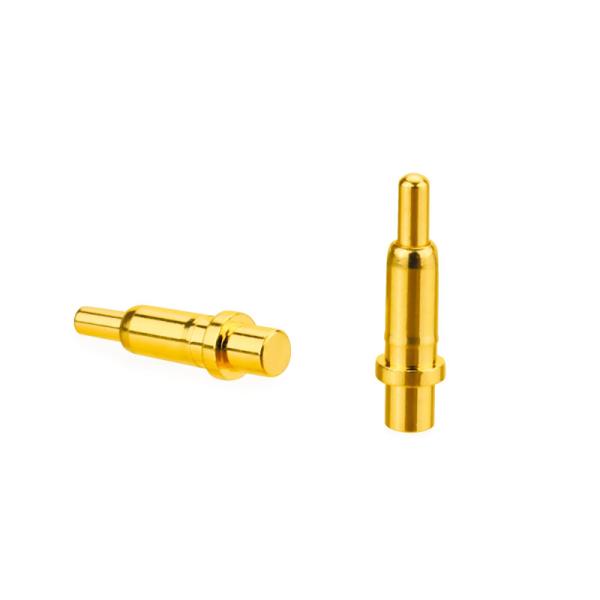

High-Performance Brass Spring Loaded Pogo Pin
Test probe pins – Pogo pins – Spring probes – Spring loaded pins;
these are generic terms to describe the spring-loaded parts that
will provide reliable electrical contact to the target, and the
distance may be uncertain. Their traditional use is to contact
printed circuit boards (PCBs) or electrical components to test
functions and measure the value of components. They are widely used
in vacuum test fixtures related to automatic test equipment (ATE).
They are also used as functional test stations as part of a larger
production line.
The test probe pins consist of a metal tube, ready to assemble the
spring and contact the plunger as a piece. They are usually
gold-plated because gold is an excellent electrical conductor and
is resistant to corrosion. The cable is usually connected to the
socket into which the test probe is inserted. Use the socket to
remove the test probe for cleaning or replacement without
disconnecting the cable.
- Long service time, 10,000 times
- No tooling fee, easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT, plug-in...
- Save space: help mechanical engineer easily allocate components on
PCB
- Good performance on RF solution
- RoHS and Halogen Free
| Material | Brass(C3604) |
| Color | Gold |
| Size | Depends on customers' requirements |
| Type | SMT, per customers' demand |
| Plated | Gold palted from 2 to 40U", can customized |
| Cycle life | 30,000 ~100,000 times |
| Contact resistance | 50m Ohm Max. |
| Salt fog | 48H |
| Rated current&voltage | 2A~40A / 12V, can be customized |
| Applications | PCB,power ,charging equipments |
| Certificate | ISO9001/ROHS/REACH |
| Packing | 1000pcs/PE bag(or according to customer requirements) |
| Payment Term | T/T,30% Deposit,70% Balance |
| Payment method | T/T,PayPal, |
| Freight | Air,Sea,Express |
| Sample Lead Time | Inventory sample 1-3 days /customizd sample 3-7days |
| Production Lead Time | 5-15 working days, or depend on order quantity |
| Made For | America,Europe,Asia,South African |
| Trade Term | EXW,FOB,CIF |
| Service | High quality with reasonable price. |
| OEM serivce, any special size, color, designs are acceptable. |
| Original sample can be re-made. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements
for vibration and shock | Mainly used for charging or signal transmission of Consumer
electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which
high-reliability is required,such as base stations,military
industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more
stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is
easy to run through the spring,and it is not recommended for
charging | The needle and the needle tube have multiple contacts to increase
the contact stability |
How to place the order
* You send us drawing or sample
* We carry through project assessment
* We make the sample and send it to you
* You think the sample is good then place an order and pay us 30%
deposit
* We start to make the product
* When the goods is done, we take photoes for your check and you
then pay the balance
* We deliver the products to courier company
Material
| Stainless Steel | SS201, SS301, SS303, SS304, (SS304 FOOD GRADE), SS316, SS316L,
SS416 etc. |
| Steel | Mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# etc |
| Brass | HPb63, HPb62, HPb61, HPb59, H59, H68, H80, H90 etc |
| Copper | C11000,C12000,C12000 C36000 etc |
| Aluminum | AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc |
| Iron | A36, 45#, 1213, 12L14, 1215 etc. |
| Plastic | ABS, PC, PE, POM, Delrin, Nylon, plastic, PP,PEI, Peek etc. |
Surface Finish
| Aluminum parts | Stainless Steel parts | Steel | Plastic |
| Clear Anodized | Polishing | Powder Coated | Painting |
| Color Anodized | Polishing | Zinc plating | Chrome plating |
| Sandblast Anodized | Passivating | Oxide black | polishing |
| Chemical Film | Sandblasting | Nickel plating | Sandblast |
| Brushing | Laser engraving | Chrome plating | Laser engraving |
| Polishing | | Carburized | |
| Chroming | | Heat treatment | |
