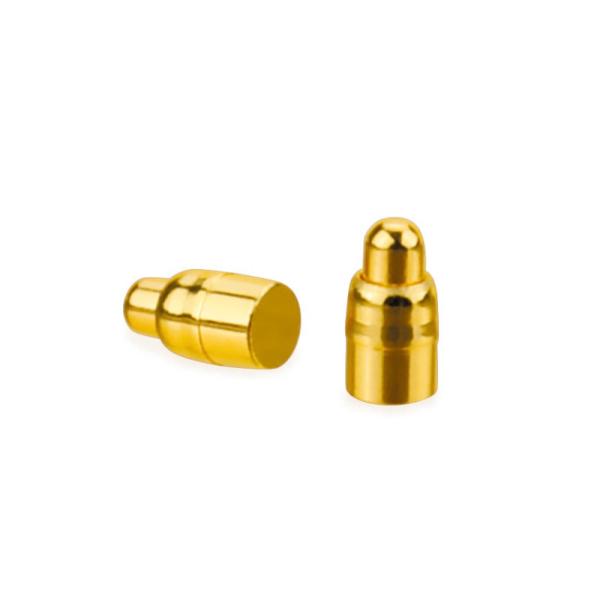

OEM Accept Male Female 2.7mm Length Pogo Pin With Spring Loaded
Spring Probe(Contact Probes) is used to test semiconductor or PCB
used in many electric appliances or electronic devices. They can be
considered as nameless hero who helps people's lifestyle everyday.
- Long service time, 10,000 times
- No tooling fee, easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT, plug-in...
- Save space: help mechanical engineer easily allocate components on
PCB
- Good performance on RF solution
- RoHS and Halogen Free
| Plunger | Material | BeCu | Most used material for spring probe for semiconductor. |
|---|
| Material | Pd Alloy | Effective for anti-solder migration. No plating is needed. |
| Plating | Au Alloy | Hardness is higher than Au(Gold) plating and is effective for
anti-solder migration. |
| Plating | Au(Gold) | Good electric conductivity. |
| Barrel | Material | Copper | Brass, Phosphor Bronze, Nickel Silver, BeCu |
|---|
| Material | Alloy | Barrel was developed by KITA. Outer diameter is available from 0.11
to 0.42mm |
| Plating | Au(Gold) | Good electric conductivity. |
| Spring | ― | Spring Steel Wire (SWP)(Music Wire) | Operating temperature: -45~125℃ |
|---|
| ― | Stainless Steel Wire (SUS) | Operating temperature: -45~140℃ |
| ― | Stainless Steel Wire for high temperature | Operating temperature: -45~200℃ |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements
for vibration and shock | Mainly used for charging or signal transmission of Consumer
electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which
high-reliability is required,such as base stations,military
industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more
stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is
easy to run through the spring,and it is not recommended for
charging | The needle and the needle tube have multiple contacts to increase
the contact stability |
