    Hydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door Damper

    Ask Lasest Price
    Brand Name : TX
    Model Number : MA15810A
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Hydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door Damper

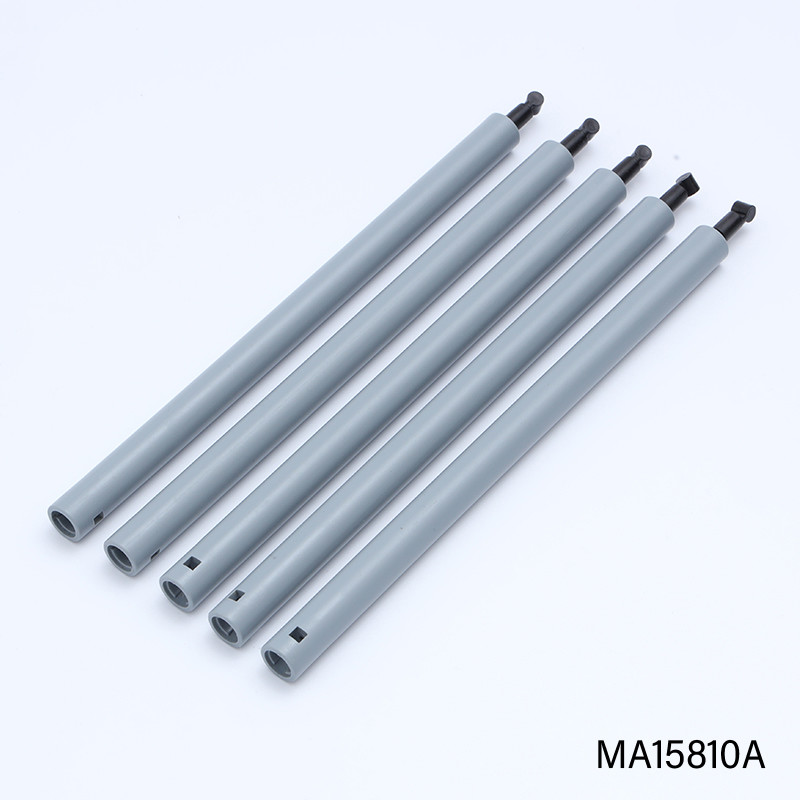

    MA15810A Hydraulic Hardware Sliding Door Damper For Sliding Rail


    Oil dampers can be found in many applications whereby a controlled motion of the application is required without using external air or hydraulic equipment. An oil damper consists of multiple seals, rod, piston and a cylinder filled with oil and available in stroke and extended lengths similar as to compression springs. Compression or extension speed can be influenced by using different orifices and oil viscosities.


    No.Product modelCylinder LengthCylinder diameterRod diameterExtend StrokeForce(N)Remarks
    1MA10910J109mm10mm2.5mm75mmCustomized
    2MA10910JL109mm10mm2.5mm75mmCustomized
    3MA10010J100mm10mm2.5mm59mmCustomized
    4MA11710J117mm10mm2.5mm75mmCustomized
    5MA15810J158mm10mm2.5mm110mmCustomized
    6MA15009J150mm9mm2.5mm110mmCustomized
    7MA08285J82mm8.5mm2.5mm52mmCustomized
    8MA08285JL82mm8.5mm2.5mm52mmCustomized
    9MA08210J82mm10mm2.5mm52mmCustomized
    10MA08309N83mm9mm1.8mm55mmCustomized
    11MA09295J92mm9.5mm2.3mm57.5mmCustomizedSelf open damper
    12MAO361OJ36mm10mm2.0mm14mmCustomizedSelf open damper
    13MA07810N78mm10.4mm1.8mm48mmCustomizedUsed for refrigerate
    14MA07885N78mm8.5mm2mm50mmCustomized
    15MA07010J70mm10mm2.5mm45mmCustomized
    16MA95510N95.5mm10.4mm1.8mm50.5Customized
    17MA10010N100mm10mm2.5mm69mmCustomized
    18MA08275J82mm7.5mm1.5mm50mmCustomizedUsed for refrigerate
    19MA15012J150mm12mm3mm110mmCustomized
    Noted: Raw material(J-POM,N-PPA),(L-Shaft as extral length)

    Damping medium
    Oil
    Material
    POM
    Operateion temperature
    -20℃-60℃
    Service life
    50,000 times
    Compression direction damping,active return

    Hydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door DamperHydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door DamperHydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door DamperHydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door DamperHydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door DamperHydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door DamperHydraulic Hardware Sliding Door Oil Damper For Sliding Rail Entry Door Soft Close Door Damper

    Our Service
    1. Samples can be offered to test before placing orders.
    2. Low MOQ. Small orders are accepted.
    3. OEM & ODM. Customization service is offered, including logo, laser marking.
    4. Outstanding R&D ability,including product development and mould development.
    5. Great pre-sales and after sales service.


    FAQ

    Q1. Can I have a sample for testing?

    A: Yes, samples are in stock, we will return sample fee back to you once you make a bulk order from us.



    Q2. What about the lead time?

    A: Sample needs 1-3 days, mass production time needs around 15 days for order quantity more than 10000 pieces.



    Q3. What is your MOQ?

    A: Small order is acceptable. 1 pc for sample checking is available.



    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Shipping time depend on the shipping way you choose.



    Q5. Can I print my logo on the product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Customized design is available. OEM and ODM are offered.

    Q6. Do you offer guarantee for the products?

    A: Yes, we offer 1 year warranty to our products.
