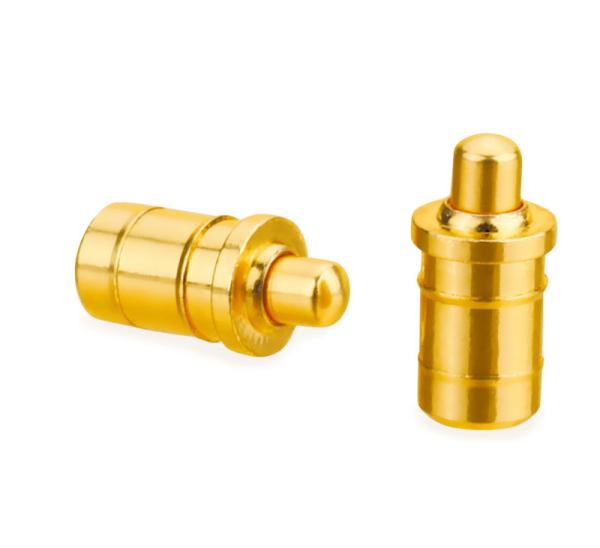

Spring Loaded Pogo Pin With Full Specification
We have powerful manufacturing capability, our automatic lathes,
CNC lathes, CNC machining centers, stamping machines and cold
heading machines plus auxiliary equipment like milling machine,
grinding machine, EDM and the cooperation of our partners, we are
able to support every different components regardless of the
prototyping or series production.
- Long service time, 10,000 times
- No tooling fee,easy go customize
- Adjustable and measurable spring force
- Fine pitch
- Flexible manufacturing ways: SMT,plug-in...
- Save space: help mechanical engineer easily allocatecomponents on
PCB
- Good performance on RF solution
- RoHS and Halogen Free
Material | Aluminum,Brass,Bronze,Stainless Steel,alloy steel,Harden Metal etc |
Finish | Polishing, Zinc Plating, Nickel Plating, Chrome Plating, Powder
Coating, Phosphate Coating etc. |
Equipments | ANSI.API.BS.DIN.JIS.GB.etc. |
Applications | Furniture Hardware, Electronic Hardware, Construction, Machinery
Parts, Equipment, Device etc. |
| 1.Depend on customer's require to make the mould .before make the
mould.
2.We sent the mould design to customer approval first .Before move
onto products.
3.We sent samples to customer to confirm first.Rock |
QC | 1. Materials are to be checked carefully before production.
2.Strict processing quality control
3.100% inspection before shipment. |
R&D | We support customer R&D make the file or improve the design if
you needed. |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
8. Water proof
| Structure | Ball beads structure | Sloping structure | Perforated structure | Claw structure |
|---|
| Contact impedance | ≤ 10mΩ | ≤ 30mΩ | ≤ 50mΩ | ≤ 5mΩ |
| Long service time | 10000+ | 10000+ | 10000+ | 500+ |
| Recommended working current | 10A max | 10A max | 10A max | 10A max |
| Main application areas | Mainly used for charging and condition with certain requirements
for vibration and shock | Mainly used for charging or signal transmission of Consumer
electronics | Mainly used for signal transmission or grounding antenna,etc. | Mainly used high-frequency,anti-instantaneous,the situation which
high-reliability is required,such as base stations,military
industries,vehicles. |
| Remarks | The beads increase the internal contacts,the contact is more
stable,and the more needle space is required | The most commonly used structure on the market | The space is smaller,but the contact is not stable,the current is
easy to run through the spring,and it is not recommended for
charging | The needle and the needle tube have multiple contacts to increase
the contact stability |
